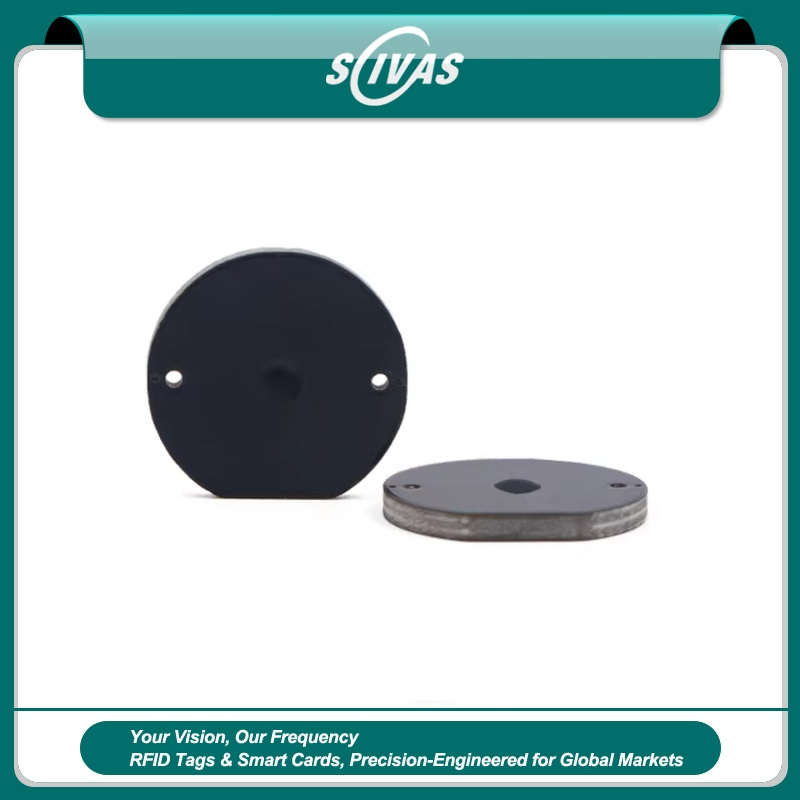

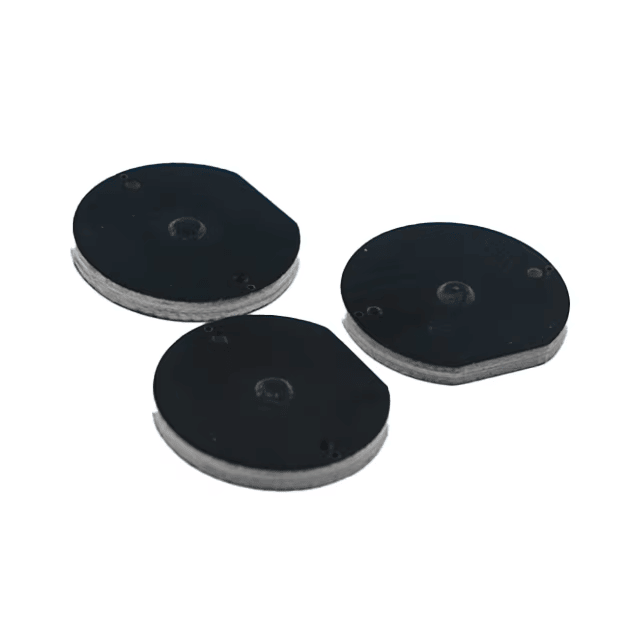

Compacte PCB RFID-tags voor metalen assets
- 100 stuks
- PD20-1
- zwart
- FR4
- D20x2mm
PCB RFID-tags voor metalen assets met FR4 en IP68 bescherming voor betrouwbare UHF tracking van apparatuur, containers en industriële objecten.
PCB RFID-tags voor metalen assetbeheer
Deze PCB RFID-tag voor metalen oppervlakken is ontwikkeld met FR4-materiaal en IP68-bescherming voor stabiele UHF-identificatie van metalen assets. Dankzij de compacte PCB-constructie, hoge temperatuurbestendigheid en duurzame behuizing is deze tag geschikt voor apparatuur, onderdelen, containers, buitenassets en andere industriële omgevingen waar standaard RFID-labels minder geschikt zijn.
Als duurzame RFID-tags voor metalen oppervlakken ondersteunt deze tag de EPC C1G2- en ISO18000-6C-standaarden. De unieke wereldwijde identificatiecode maakt efficiënte activatracering en voorraadbeheer mogelijk. De tag kan worden bevestigd met 3M-lijm, klinknagels, magneten, schroeven of andere geschikte bevestigingsmethoden, zodat systeemintegrators verschillende montagevereisten kunnen ondersteunen in fabrieken, magazijnen, logistieke terreinen, petrochemische locaties en automotive toepassingen.
Deze tag is ontworpen voor gebruik met vaste en mobiele RFID-lezers en levert betrouwbare leesprestaties op metalen oppervlakken. Bedrukking van logo's, barcodes, serienummers, codering en maatwerkontwerpen zijn beschikbaar voor projectmatige toepassingen.
Typische toepassingen
1. Metalen omgevingen
2. Activatracering voor apparatuur, onderdelen en containers
3. Voorraadbeheer
4. Logistiek beheer
5. Identificatie van petrochemische assets
6. Activatracering in de automotive sector
7. Veiligheidsbeheer
8. Tracking van gascilinders
9. Buiten toepassingen zoals beheer van reclameobjecten
Productspecificaties
| Model | PD20-1 |
| Materiaal | FR4 |
| Kleur | Zwart |
| Afmetingen | D=20 x 2 mm(L x W x T) |
| Gewicht | 1.5 g |
| Werktemperatuur | -40~+85℃ |
| Bestand tegen temperatuur | -40~+150℃ |
| IP-code | IP68 |
| Vochtigheid | 98% niet-condenserend |
| RFID-standaard | EPC C1G2 (ISO18000-6C) |
| Chiptype | NXP Ucode 8 |
| Geheugen | User -N/A; EPC - 128 bits; TID - 96 bits |
| Leesafstand (vaste lezer) | FCC: 6.6 m, op metaal; ETSI: 6.5 m, op metaal |
| Leesafstand (mobiele lezer) | FCC: 2.5 m, op metaal; ETSI: 2.5 m, op metaal |
| Gegevensopslag | > 10 jaar |
| Herschrijven | 100000 keer |

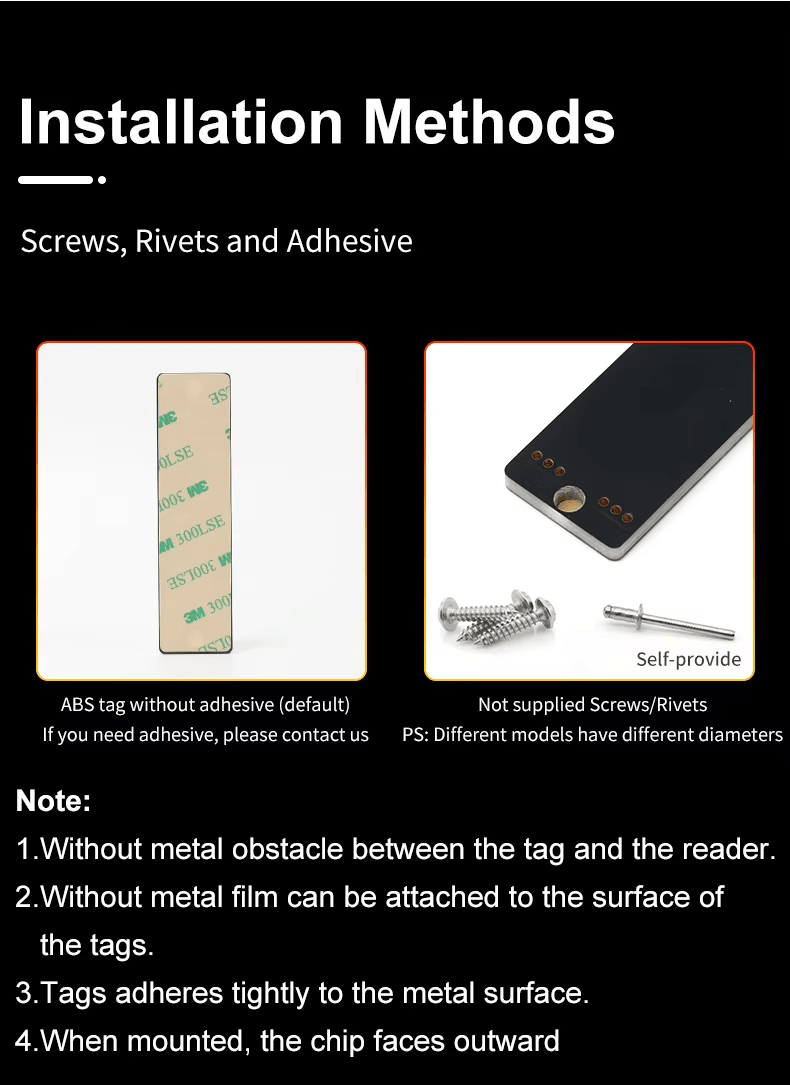

| Installatie | 3M-lijm, klinknagel, magneet, schroef |
| Personalisatie | Logo bedrukken, barcode, serienummer, codering, ontwerp, enz. |

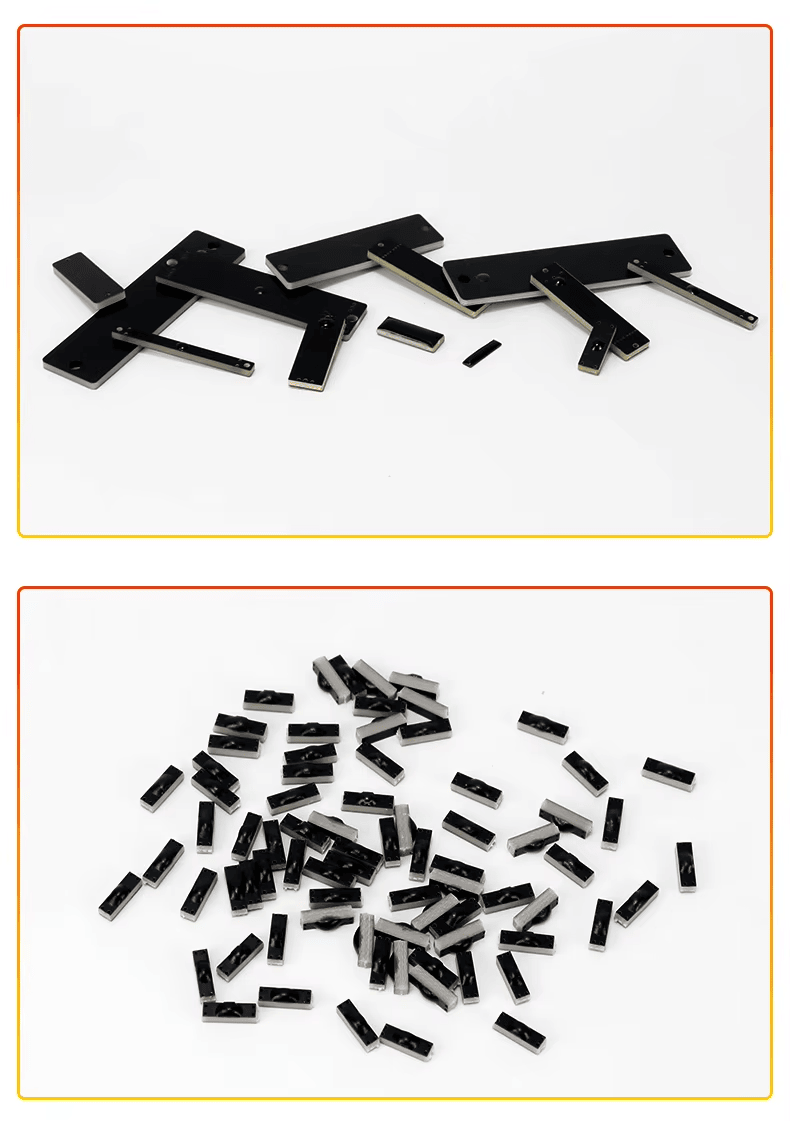

Beschikbare PCB RFID-tagmodellen
| Model | Chip | Afmetingen | Leesafstand (mobiele lezer) |
| P0606-1 | NXP Ucode 8 | 6x6x3mm | 2.3~7.4m |
| P0701-1 | Impinj M750 | 7x1.6x1.6mm | 0.15m |
| P0703-1 | Impinj M4QT | 7x3x1mm | 0.2m |
| P0803-1 | NXP Ucode 8 | 8x3x3mm | 1~8m |
| P0905-1 | Monza R6P | 9x5x1.6mm | 0.3m |
| P1003-1 | Monza R6P | 10x3.5x1mm | 0.3m |
| P1003-2 | Impinj M750 | 10x3.5x2mm | 0.4m |
| P1005-1 | Impinj M4QT | 10x5x2mm | 0.6m |
| P1207-1 | Impinj M4QT | 12x7x2.5mm | 0.8m |
| P1307-1 | NXP Ucode 8 | 13x7x3mm | 1.5~4m |
| P1307-2 | Alien H9 | 13x7x3mm | 1m |
| P1501-1 | Impinj M750 | 15x1.8x1.6mm | 0.8m |
| P1504-1 | NXP Ucode 8 | 15x4x2mm | 1~8m |
| P1604-1W | Impinj M750 | 16x4x2mm | 0.8m |
| P1808-1 | Impinj M4QT | 18x8x2.5mm | 1m |
| P2006-1W | Alien H9 | 20x6x2mm | 0.8m |
| P2020-1 | Qstar-7U | 20x20x3mm | 3.5m |
| P2208-1 | NXP Ucode 8 | 22x8x2.5mm | 2m |
| P2208-2 | NXP Ucode 8 | 22x8x2mm | 2m |
| P2309-1 | Impinj M750 | 23x9x3.5mm | 2m |
| P2312-1 | Alien H9 | 23x12x2.5mm | 2m |
| P2509-1 | Impinj M4QT | 25x9x2.5mm | 2m |
| P2510-1 | NXP Ucode 8 | 25x10x2mm | 2.5m |
| P2510-2 | NXP Ucode 8 | 25x10x3mm | 8.5~16.5m |
| P2808-1W | Impinj M750 | 28x8x2mm | 2m |
| P2908-1 | Alien H9 | 29x8x1.2mm | 1.5m |
| P3005-1 | NXP Ucode 8 | 30x5x1mm | 0.7m |
| P3005-2 | NXP Ucode 8 | 30x5x3mm | 2.5~6m |
| P3010-1 | Impinj M4QT/M781 | 30x10x1mm | 1m |
| P3206-1 | Impinj M781 | 32x6x1.6mm | 2m |
| P3310-1 | Impinj M4QT | 33x10x3mm | 3m |
| P3516-1 | Impinj M781 | 35x16x2.5mm | 4m |
| P3611-1 | Alien H9 | 36x11x2mm | 3m |
| P3613-1 | Impinj M4QT | 36x13x2.5mm | 3m |
| P3613-2 | Impinj M781 | 36x13x2.5mm | 3.5m |
| P3613-3 | NXP Ucode 8 | 36x13x3mm | 2~2.5m |
| P4010-1 | Impinj M781 | 40x10x1mm | 2m |
| P4010-2 | NXP Ucode 8 | 40x10x3mm | 3~3.5m |
| P4215-1 | NXP Ucode 8 | 42x15x2mm | 6m |
| P4215-2 | NXP Ucode 8 | 42x15x2mm | 6m |
| P4520-1 | Alien H3 | 45x20x3mm | 3.5m |
| P5010-1 | NXP Ucode 8 | 50x10x1mm | 3m |
| P5010-2 | NXP Ucode 8 | 50x10x1mm | 4~5m |
| P5010-3 | Impinj M781 | 50x10x3.5mm | 4m |
| P5010-4 | Monza R6P | 50x10x3mm | 3m |
| P5018-1W | Impinj M781 | 50x18x1.1mm | 1.2m |
| P5213-1 | NXP Ucode 8 | 52x13x3mm | 4.5m |
| P5213-2 | Alien H9/M781 | 52x13x3.5mm | 4m |
| P5605-1 | NXP Ucode 8 | 56.5x5.0x1.3mm | 1.5m |
| P5918-1 | Impinj M781 | 59x18x3mm | 5m |
| P6015-1W | Impinj M781 | 60x15x3mm | 5m |
| P6020-1 | NXP Ucode 8 | 60x20x3mm | 6.5~7m |
| P6025-1W | Alien H9 | 60x25x2mm | 3.5m |
| P6030-1W | Alien H9 | 60x30x3mm | 3.5m |
| P6030-2W | Impinj M781 | 60x30x3mm | 5m |
| P7020-1 | Alien H9/M781 | 70x20x3.5mm | 5~7m |
| P7030-1W | Alien H9 | 70x30x3mm | 6m |
| P7920-1 | Impinj M4QT | 79x20x2.5mm | 6m |
| P8005-1 | NXP Ucode 8 | 80x5x2mm | 3~4m |
| P8020-1 | NXP Ucode 8 | 80x20x3mm | 8m |
| P8020-2 | Alien H9/M781 | 80x20x3.5mm | 5~7m |
| P9525-1 | NXP Ucode 8 | 95x25x3.5mm | 4.5m |
| P9525-2 | NXP Ucode 8 | 95x25x3mm | 8~9m |
| P9525-3 | Alien H9 | 95x25x3mm | 4.5m |
| P11009-1 | NXP Ucode 8 | 110x9.6x1.2mm | 10~13m |
| PD04-1 | Impinj M781 | D4.5x3mm | 0.5m |
| PD05-1 | NXP Ucode 8 | D5x3mm | 2~6.2m |
| PD06-1 | NXP Ucode 8 | D6x1.6mm | 0.1m |
| PD06-2 | Impinj M781 | D6x2.5mm | 0.7m |
| PD09-1 | Impinj M781 | D09x3mm | 1.5m |
| PD10-1 | Impinj M750 | D10x1.6mm | 0.3m |
| PD10-1 | NXP Ucode 8 | D10x3mm | 1.5~4m |
| PD10-2 | Impinj M4QT | D10x2mm | 0.4m |
| PD12-1W | Monza R6P | D12x11x3.5mm | 0.8m |
| PD16-1 | NXP Ucode 8 | D16x2mm | 2~6m |
| PD16-2 | Impinj M4QT | D16x2.5mm | 1.2m |
| PD16-3 | Impinj M780 | D16x3mm | 1.5m |
| PD17-1 | Alien H9 | D17x2.5mm | 1.5m |
| PD18-1 | Alien H9 | D18x2.5mm | 1.5m |
| PD20-1 | NXP Ucode 8 | D20x2mm | 2.5m |
| PD20-2 | Alien H9 | D20x2.5mm | 1.2~2m |
| PD20-3 | Impinj M780 | D20x3mm | 2m |
| PD25-1 | Alien H9 | D25x2.5mm | 2m |
| PD25-2 | NXP Ucode 9 | D25x9.8x3mm | 3.5m |
Lijst met PCB-RFID-tags voor metalen oppervlakken
Opmerking: De in de onderstaande tabel vermelde leesbereiken kunnen door verschillen in testomgevingen aanzienlijk afwijken van de prestaties in de praktijk. Voer altijd praktijktests uit om nauwkeurige resultaten te verkrijgen.
| Model | Chip | Afmetingen | Leesbereik |
| P0603-1 | H3 / H9 | 6x3x4mm | 0.40~0.90m |
| P0606-1 | UCODE8 | 6x6x3mm | 2.30~7.40m |
| P0606-2 | H3 / H9 / UCODE8 | 6x6x4mm | 0.80~1.10m |
| P0701-1 | M750 | 7x1.6x1.6mm | 0.15~1.00m |
| P0703-1 | M4QT | 7x3x1mm | 0.20~1.50m |
| P0803-1 | UCODE8 | 8x3x3mm | 1.00~8.00m |
| P0905-1 | R6P | 9x5x1.6mm | 0.30~1.50m |
| P1003-1 | R6P | 10x3.5x1mm | 0.30~1.50m |
| P1003-2 | M750 | 10x3.5x2mm | 0.40~1.50m |
| P1004-1 | H3 / H9 | 10x4x2mm | 0.75~1.35m |
| P1005-1 | M4QT | 10x5x2mm | 0.60~1.50m |
| P1204-1 | UCODE8 | 12x4x1.5mm | 0.60~1.50m |
| P1204-2 | UCODE8 | 12x4x1.5mm | 0.90~2.40m |
| P1207-1 | M4QT | 12x7x2.5mm | 0.90~2.40m |
| P1307-1 | UCODE8 | 13x7x3mm | 1.50~4.00m |
| P1307-2 | H9 | 13x7x3mm | 0.80~3.00m |
| P1501-1 | M750 | 15x1.8x1.6mm | 0.80~2.00m |
| P1504-1 | UCODE8 | 15x4x2mm | 1.00~8.00m |
| P1604-1W | M750 | 16x4x2mm | 0.80~2.00m |
| P1806-1 | H3 / H9 | 18x6x3mm | 1.80~2.60m |
| P1808-1 | M4QT | 18x8x2.5mm | 1.80~2.60m |
| P2006-1W | H9 | 20x6x2mm | 0.80~2.00m |
| P2020-1 | Qstar-7U | 20x20x3mm | 3.50~5.50m |
| P2208-1 | UCODE8 | 22x8x2.5mm | 2.00~4.00m |
| P2208-2 | UCODE8 | 22x8x2mm | 2.00~4.00m |
| P2208-3 | H3 / H9 | 22x8x3mm | 2.60~4.50m |
| P2309-1 | M750 | 23x9x3.5mm | 2.00~4.00m |
| P2312-1 | H9 | 23x12x2.5mm | 2.00~4.00m |
| P2509-1 | M4QT | 25x9x2.5mm | 2.00~4.00m |
| P2510-1 | UCODE8 | 25x10x2mm | 2.00~4.00m |
| P2510-2 | UCODE8 | 25x10x3mm | 8.50~16.50m |
| P2808-1W | M750 | 28x8x2mm | 2.00~4.00m |
| P2908-1 | H9 | 29x8x1.2mm | 1.50~3.50m |
| P3005-1 | UCODE8 | 30x5x1mm | 0.70~3.10m |
| P3005-2 | H3 / H9 | 30x5x2mm | 0.70~3.10m |
| P3005-3 | UCODE8 | 30x5x3mm | 2.50~6.00m |
| P3010-1 | M4QT/M781 | 30x10x1mm | 1.00~3.60m |
| P3206-1 | M781 | 32x6x1.6mm | 2.00~4.60m |
| P3310-1 | M4QT | 33x10x3mm | 3.00~4.50m |
| P3310-2 | H3 / H9 | 33x10x3.5mm | 2.60~4.50m |
| P3516-1 | M781 | 35x16x2.5mm | 3.50~5.50m |
| P3611-1 | H9 | 36x11x2mm | 3.00~6.00m |
| P3613-1 | M4QT | 36x13x2.5mm | 3.00~5.00m |
| P3613-2 | M781 | 36x13x2.5mm | 3.50~5.50m |
| P3613-3 | UCODE8 | 36x13x3mm | 2.00~3.50m |
| P3613-4 | H3 / H9 | 36x13x3.5mm | 2.50~4.70m |
| P4010-1 | M781 | 40x10x1mm | 2.00~4.60m |
| P4010-2 | H3 / H9 | 40x10x2.1mm | 2.80~4.50m |
| P4010-3 | UCODE8 | 40x10x3mm | 3.00~3.50m |
| P4215-1 | UCODE8 | 42x15x2mm | 5.50~9.60m |
| P4215-2 | UCODE8 | 42x15x2mm | 5.50~9.60m |
| P4520-1 | H3 / H9 | 45x20x3mm | 3.50~6.00m |
| P4921-1 | ICODE SLIX | 49x21x3mm | 5.00~8.0cm |
| P5010-1 | UCODE8 | 50x10x1mm | 3.00~5.00m |
| P5010-2 | UCODE8 | 50x10x1mm | 4.00~5.00m |
| P5010-3 | M781 | 50x10x3.5mm | 3.50~6.00m |
| P5010-4 | R6P | 50x10x3mm | 3.00~6.00m |
| P5018-1W | M781 | 50x18x1.1mm | 1.20~3.10m |
| P5213-1 | UCODE8 | 52x13x3mm | 3.50~6.00m |
| P5213-2 | H9/M781 | 52x13x3.5mm | 3.50~6.00m |
| P5605-1 | UCODE8 | 56.5x5.0x1.3mm | 1.50~3.50m |
| P5918-1 | M781 | 59x18x3mm | 5.00~9.20m |
| P6015-1W | M781 | 60x15x3mm | 5.00~9.20m |
| P6020-1 | UCODE8 | 60x20x3mm | 6.50~7.00m |
| P6020-2 | UCODE8 | 60x20x3.5mm | 5.50~9.00m |
| P6020L | XBL2005-KX | 60x20*1mm | 3.00~6.00m |
| P6020LM | XBL2005-KX | 60x20*3mm | 3.00~6.00m |
| P6025-1W | H9 | 60x25x2mm | 3.50~6.00m |
| P6030-1W | H9 | 60x30x3mm | 3.50~6.00m |
| P6030-2W | M781 | 60x30x3mm | 4.00~6.00m |
| P7020-1 | H9/M781 | 70x20x3.5mm | 5.00~7.00m |
| P7020-2 | H3 / H9 | 70x20x3.6mm | 6.30~10.00m |
| P7030-1W | H9 | 70x30x3mm | 5.00~9.00m |
| P7035-1 | UCODE8 | 70x35x3.7mm | 5.10~11.30m |
| P7525-1 | UCODE8 | 75x25x3mm | 6.30~10.30m |
| P7920-1 | M4QT | 79x20x2.5mm | 5.00~9.00m |
| P8005-1 | UCODE8 | 80x5x2mm | 3.00~4.00m |
| P8008-1 | H3 / H9 | 80x8x3.5mm | 3.10~4.20m |
| P8020-1 | UCODE8 | 80x20x3mm | 6.00~9.00m |
| P8020-2 | H9/M781 | 80x20x3.5mm | 5.00~7.00m |
| P9020-1 | H3 / H9 | 90x20x3.7mm | 6.30~10.80m |
| P9020-2 | H3 / H9 | 90x20x5mm | 6.30~10.80m |
| P9525-1 | UCODE8 | 95x25x3.5mm | 3.00~6.50m |
| P9525-2 | UCODE8 | 95x25x3mm | 8.00~12.50m |
| P9525-3 | H3 / H9 / M4QT | 95x25x3.55mm | 4.30~9.60m |
| P9525-4 | H9 | 95x25x3mm | 3.00~6.50m |
| P9525-5 | M780 | 95x25x3mm | 6.30~10.80m |
| P9525-6 | Ucode 7xm | 95x25x3.5mm | 3.00~6.50m |
| P11009-1 | UCODE8 | 110x9.6x1.2mm | 10.00~13.00m |
| P13060-1 | UCODE8 | 130x60x3.9mm | 7.00~21.00m |
| PD04-1 | M781 | D4.5x3mm | 0.30~1.10m |
| PD05-1 | UCODE8 | D5x3mm | 0.80~6.20m |
| PD06-1 | UCODE8 | D6x1.6mm | 0.10~1.20m |
| PD06-2 | M781 | D6x2.5mm | 0.70~1.20m |
| PD06-3 | H3 / H9 / UCODE8 | D6x4mm | 0.45~0.85m |
| PD09-1 | M781 | D09x3mm | 1.50~2.60m |
| PD10-1 | M750 | D10x1.6mm | 0.30~1.30m |
| PD10-1 | UCODE8 | D10x3mm | 1.50~4.00m |
| PD10-2 | M4QT | D10x2mm | 0.40~1.20m |
| PD12-1W | R6P | D12x11x3.5mm | 0.80~1.50m |
| PD13-1 | H3 / H9 | D13x2mm | 0.90~1.50m |
| PD16-1 | UCODE8 | D16x2mm | 2.00~6.00m |
| PD16-2 | M4QT | D16x2.5mm | 1.20~3.00m |
| PD16-3 | M780 | D16x3mm | 1.50~3.30m |
| PD17-1 | H9 | D17x2.5mm | 1.50~3.30m |
| PD18-1 | H9 | D18x2.5mm | 1.50~3.30m |
| PD20-1 | UCODE8 | D20x2mm | 2.50~4.20m |
| PD20-2 | H9 | D20x2.5mm | 1.20~2.00m |
| PD20-3 | M780 | D20x3mm | 2.00~3.70m |
| PD25-1 | H9 | D25x2.5mm | 2.00~3.70m |
| PD25-2 | UCODE9 | D25x9.8x3mm | 3.50~6.50m |
| PD40-1 | R6-P | D40x3mm | 3.50~6.80m |
